YD - Super

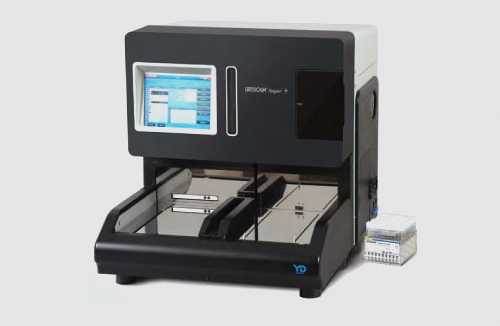

YD URiSCAN Super   Specification







 Operation mode  Fully - automatic urine analyzer
 Dimension  536 mm (W) * 686 mm (D) * 535 mm (H)
 Weight  70 Kg
 Rated voltage  110 ~ 240 V ( 50 / 60 Hz ), free voltage
 Rated power  636 W
 Measurement Cycle  Reflectance photometers
 Measurement method

 Test type : reflectance photometers + CCD camera image capture
 Throughput : 200 tests per hour
 Test parameters : Blood, Bilirubin, Creatinine, UroBilinogen, Ketones,

 Protein, Nitrite, Microalbumin, Glucose, pH,  Leukocytes, Ascorbic acid,

 Color S.G ( By Refractometer ) , Clarity ( By Turbidimeter )
 Sensor : Camera + CCD color image sensor
 Memory capacity : more than 1,000,000 patient test results,

 500 control results
 Light source : LED

 Display  8.4” LCD touch screen
 Reagent volume  400 samples at once
 Sample volume  Min 1.5 ~ 2.0 mL
 Sample Rack  Standard 10 - position rack
 Sample Loading  100 samples at one time
 Stat sample  Handling 1 stat in the rack
 Operating conditions  Temperature : 15 ~ 30 ℃ Humidity : 20 ~ 80 %
 Approval

 CE
