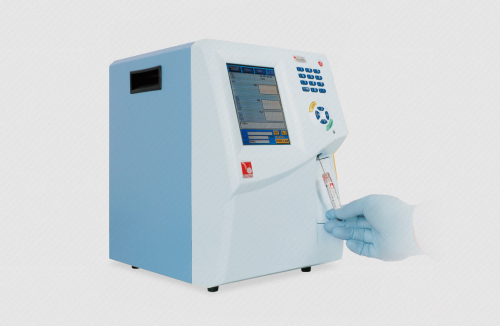

Orphee - Mythic 22OT





Orphee - Mythic 22 OT

5-Diff, Fully automated 22 parameters haemotology analyzer.

˙ Compact-sized (The Smallest 5-Diff in the world )

˙ 100 % full Optical 5-Diff instrument

˙ A New patented technology for 5-Diff: OCHF

˙ Sample volume < 18.2 uL

˙ Easy use ( Color touchscreen )

˙ Less mainteance

˙ Low reagent consuption ( Only 3 reagents )







Orphee Mythic 22OT   Sepecification



˙ Technical specification

 Throughput  50 samples / Hr
 Sample volume  < 17 uL
 Technology

 Impedance ( WBC , RBC , PLT )

 Spectrophotometry ( HGB )

 Optical ( 5 - DIFF ) Optical Cytometry Hydrofocusing Free

 Parameters

 22 parameters + 2 Curves + 1 Scattergram

 WBC , LYM % and # , MON % and # , NEU % and # , BAS % and # ,

 EOS % and # ,

 RBC , HGB , HCT , MCV , MCH , MCHC , RDW , PLT , MPV , PCT , PDW ,

 RBC Curve , 5 - Diff Scattergram , PLT Curve

 Dimensions  250 mm (W) * 340 mm (D) * 350 mm (H)
 Weight  11 Kgs
 Power  90 ~ 250 V ; 50 ~ 60 Hz ; 150 VA
 Priters

 External printer

 Dot Matrix printer

 Thermal printer

 B/W injek printer

 B/W or color laser printer

 User's interface

 TFT color touchscreen

 Bulit-in numerical keyboard
 Output

 RS232

 Ethernet ( UDP / IP, TCP / IP )

 2 USB port



˙ Software specification

 Multilanguage  French, English, Spanish, Portuguese, Italian, German, Cyrillic, Chinese....
 Calibration  Automated or manual
 Quality Control

 6 batches

 100 runs / batch

 Table and  L - J graphs

 Archives

 Internal memory:1,500 patients

 Mass storage ( USB ):60,000 patients

 Traceability  Patient Identification:Name, Patient ID , Sample ID

 Dialy log

 Reagent monitoring:lot number, Expiry date, volume

  Service log
 Flagging

 Pathologic flags

 Lab limits

 Reagent alerts

 Instrument alerts



˙ Reagents

 HM22 - 001 - 01  Cleaner for Mythic 22
 HM22 - 002 - 01  OnlyOne
 HM22 - 003 - 10

 Diluent for Mythic 22



˙ Calibrator and Controls

 Myt - Cal  Calibrator for Mythic 22

 Myt - 5D trilevel or normal level

 Quality controls for Mythic 22
