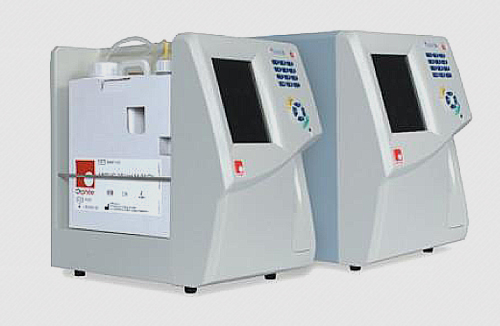

Orphee - Mythic 18 Vet



Orphee - Mythic 18 Vet

Fully automated 18 parameters haemotology analyser dedicated for Vet Application

˙ Compact-sized ( 350 x 250 x 340 mm )

˙ Light weight (  9 Kgs; 11 Kgs (including reagnets ))

˙ Low blood sample only 9.8 uL

˙ Low reagnet consumption less than other brands 30 ~ 50 %

˙ Easy and friendly use ( Touchscreen )

˙ Less maintenance

˙ 60 samples / hour

˙  10 species animal parameters







Orphee Mythic 18 Vet   Specification

˙ Technical specification

 Throughput  60 samples / Hr
 Sample volume  <:10 uL
 Technology

 Impedance ( WBC , RBC , PLT )

 Spectrophotometry ( HGB )

 Parameters  18 parameters+ 3 Curves

 WBC , LYM % and # , MON % and # , GRA % and #

 RBC , HGB , HCT , MCV , MCH , MCHC , RDW , PLT , MPV , PCT , PDW ,

 RBC Curve , WBC Curve , PLT Curve
 Dimension  250 mm (W) * 340 mm (D) * 350 mm (H)
 Weight  9 Kgs
 Power  90 ~ 250 V ; 50 ~ 60 Hz ; 150 VA
 Printers

 External printers

 Dot matrix printer

 Thermal printer

 Monochrome inkjet prnter

 Monochrome laser printer

 User's Interface

 TFT color touchscreen

 Bulit-in nimerical keyboard

 Output  RS232

 Ethernet ( UDP / IP, TCP / IP )

 2 USB port



˙ Software specification

 Graphic interface  Meun with Icon for direct access to main species
 10 species avaliable

 Dog, Cat, Horse, Cattle, Swine, Sheep, Goat, Rabbit, Mouse, Rat

 10 other species can be setup by user

 Mutilanguage  French, Engliah, Spanish, Portuguese, Italia, German, Cyrillic, Chinese....
 Calibration  Automatic or Manual
 Quality Control

  6 batches

 100runs / batch

 Table and  L - J Graphs

 Archives

 Internal memory:1,500 patients

 Mass storage ( USB ):60,000 patients
 Traceability

 Patient Identification:Name, Patient ID, Sample ID

 Dialy log

 Reagent monitoring:lot number, expiry date, volume

 service log
 Flagging  pathologic flags

 Lab limits

 Reagent alerts

 Instrument alerts



˙ Reagents

 HMVET - 010  M - Pack for Mythic 18 Vet



˙ Controls

 Myt - 3D trilevel or normal level

Quality controls for Mythic 18 Vet
