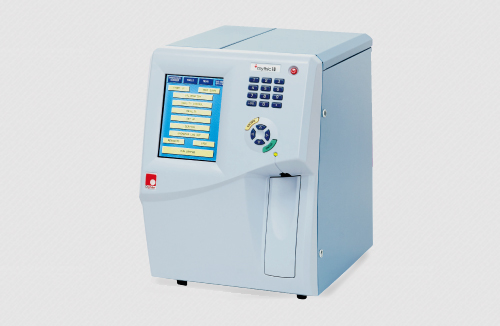

Orphee - Mythic 18
Orphee - Mythic 18
Fully automated 18 parameters haemotology analyser
˙ Compact-sized ( 350 x 250 x 340 mm )
˙ Light weight ( 9 Kgs；11 Kgs(Including reagents) )
˙ Low blood sample only 9.8 uL
˙ Low reagnet consumption ( only 3 reagents )
˙ Easy and friendly use ( touchscreen )
˙ Less mainteance
˙ 60 samples / hour
Orphee Mythic 18 Specification
-
˙ Technical specification
| Thruoghput | 60 samples / Hr |
| Sample volume | < 10 uL |
| Technology |
Impedance ( WBC , RBC , PLT ) Spectrophotometry ( HGB ) |
| Parameters | 28 parameters + 3 Curves
WBC, LYM % and # , MON % and # , GRA % and # RBC , HGB , HCT , MCV , MCH , MCHC , RDW , PLT , MPV , PCT , PDW , RBC Curve , WBC Curve , PLT Curve |
| Dimensions | 250 mm (W) * 340 mm (D) * 350 mm (H) |
| Weight | 9 Kgs |
| Power | 90 ~ 250 V ; 50 ~ 60 Hz ; 150 VA |
| Printers |
External printers Dot matrix printer Thermal printer Monochrome inkjet prnter Monochrome laser printer |
| User's interface |
TFT color touchscreen Bulit-in nimerical keyboard |
| Output | RS232
Ethernet ( UDP / IP , TCP / IP ) 2 USB port |
˙ Software specification
| Multilanguage | French, Engliah, Spanish, Portuguese, Italia, German, Cyrillic, Chinese.... |
| Calibration | Automatic or maunal |
| Quality control |
6 batches 100 runs / batch Table and L - J graphs |
| Archives |
Internal memory：1,500 patients Mass storage ( USB )：60,000 patients |
| Traceability | Patient Identification：Name, Patient ID, Sample ID
Dialy log Reagent monitoring：lot number, expiry date, volume service log |
| Flagging | Pathologic flags
Lab limits Reagent alerts Instrument alerts |
˙ Reagents
| HM18 - 007 - 1 | Mythic 18 - 22 Enzymatic Cleaning Solution |
| HM18 - 008 - 05 | Mythic 18 Cyanide free Lytic Solution |
| HM18 - 008 - 1 |
Mythic 18 Cyanide free Lytic Solution |
| HM18 - 009 - 10 |
Mythic 18 Diluent |
| HM18 - 009 - 20 | Mythic 18 Diluent |
| HM18 - 010 | M - Pack for Mythic 18 |
˙ Calibrator and controls
| Myt - Cal | Calibrator for Mythic 18 |
|
Myt - 3D trilevel or normal level |
Quality controls for Mythic 18 |
